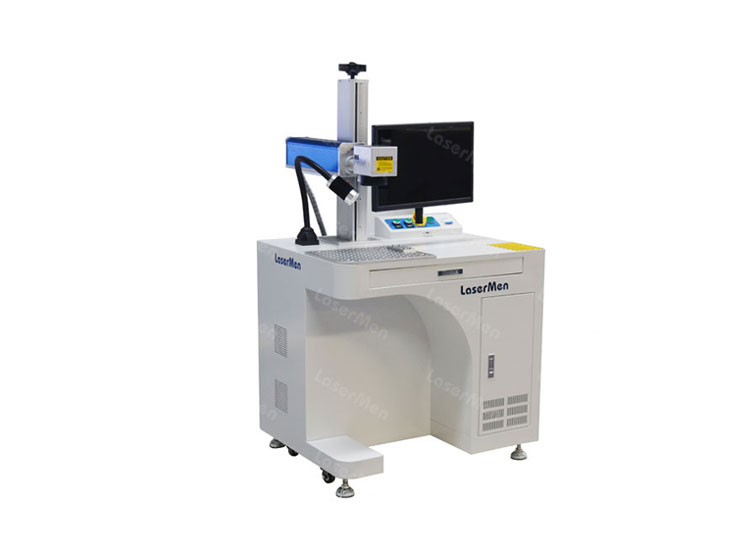

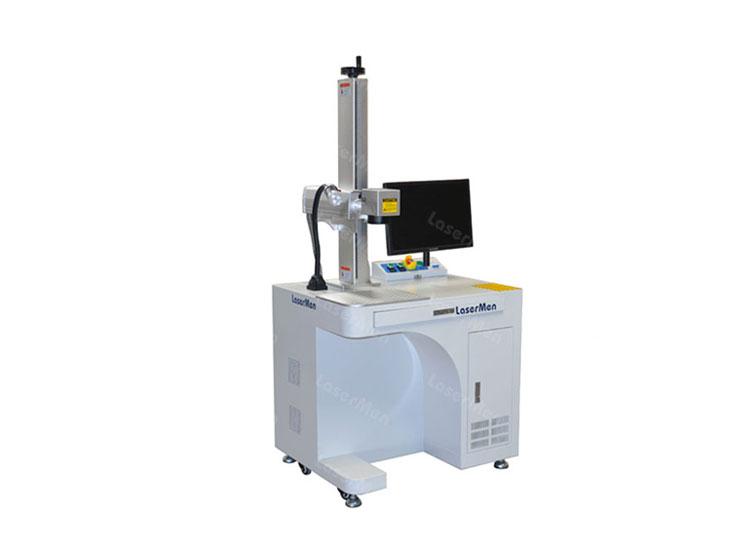

Desk type fiber laser marking machine

Product name: Desk type fiber laser marking machine
Laser power: 20W / 30W / 50W / 60W / 80W / 100W
Working range: 110mm / 150mm / 175mm / 200mm / 300mm
Application: Widely used for metal and nonmetal materials engraving

Machine features

LaserMen desk type fiber laser marking machine
Machine Features
1. High quality laser source (Raycus brand, optional: IPG, MAX, JPT, etc.), good laser beam quality, uniform laser power density, and stable laser power output. It has the characteristics of no laser leakage, resistance of high reflection and so on, meeting the application demand of the mainstream market.
2. High speed galvano scanner has the advantages of small size, high scanning speed and good stability. Its performance reaches the advanced level in the world.
3. Easy to use, no consumables, low power consumption; The marking is more precise and clear. It has an irreplaceable advantage in areas where depth, smoothness and fineness are highly demanded. It fully meet the needs of industrial continuous working.
4. Strong marking software with multiple functions, compatible with software AutoCAD, Coreldraw, Photoshop, etc.; supporting formats of PLT、AI、DXF、BMP、JPG, etc.; supporting SHX and TIF font library, and itself possessing multi-font library; Support marking of variable numbers, bar codes, QR codes, etc.
5. Based on different working requirements, we can build the machine with optional functions like rotary, 2D/3D work table, auto focusing, dynamic auto focusing, conveyor table, etc.

Technical parameters

Laser power 20W/30W/50W/60W/80W/100W
Laser source MAX/Rayucs/JPT fiber laser source
Marking area 110mm/150mm/175mm/200mm/300mm
Laser wavelength 1064nm
Frequency 20kHz~80kHz
Marking speed 0-7000mm/s
Resolution 0.001mm
Repeat positioning accuracy 0.003mm
Minimum line width 0.01mm
Minimum character height 0.1mm
Cooling system Air cooling
Working voltage 0.5KW/AC220V/50Hz(option)
Working environment 0~35°C humidity≤90%
Galvo head/galvanometer Sino/SKT galvo head


Machine details

Laser marking machine product description:
1). Good beam quality
The beam output center of the fiber laser marking machine is 1064nm, the spot pattern is very good, and the focusing spot diameter is less than 20um. The single line is thinner and can realize precision hyperfine machining.
2). Good marking quality
Fiber laser marking machine marking text information clear permanent, will not fade, fall off.
3). Fast marking speed
The electro-optical conversion efficiency of fiber laser marking machine can reach more than 28%, while the electro-optical conversion rate of other types of laser marking machine is only 2%-10%, which is very energy saving. Fiber laser marking machine processing speed is fast, is the traditional marking machine 2-3 times, is the semiconductor laser marking machine 3 times.
4.) energy saving and environmental protection
Secondly, non-contact marking, no pollution, no noise, very environmental protection.
fiber laser marking engraving machine
fiber laser marking engraving machine

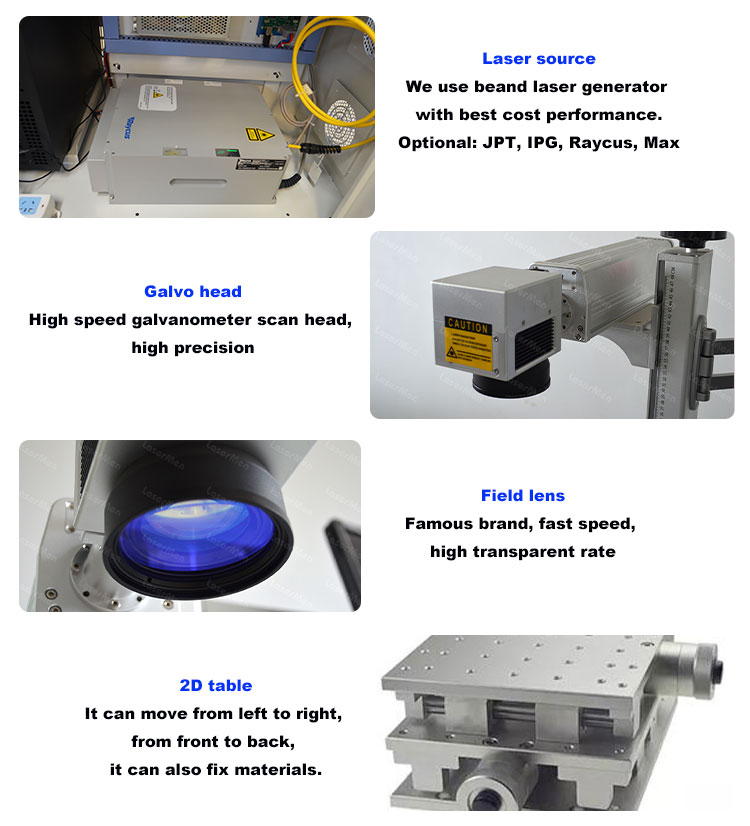

fiber laser marking machine details

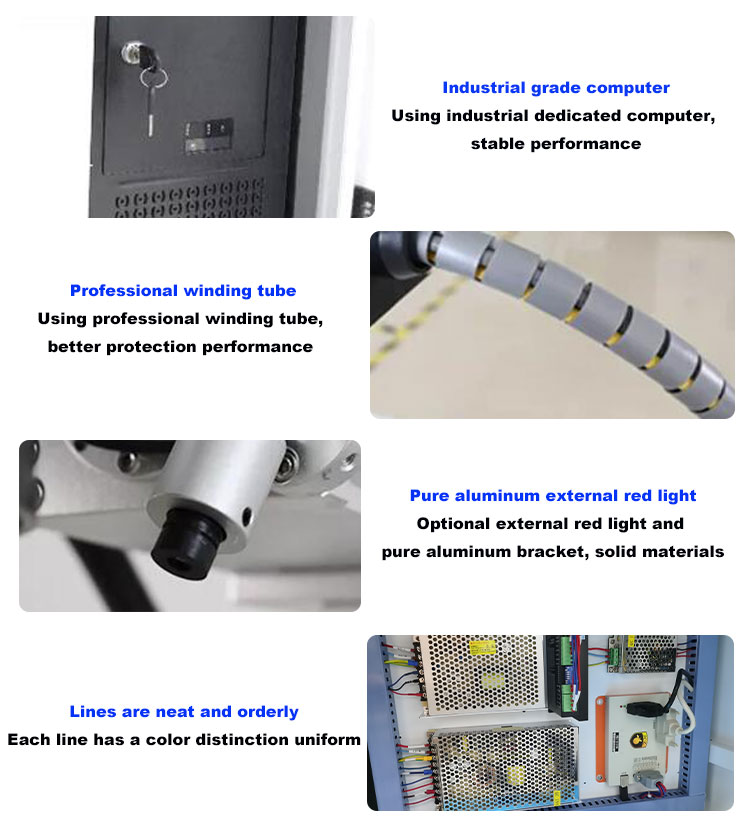

fiber laser marking machine detailes show

Machine Application

Fiber laser marking machine applicable Materials:
Plastics, stainless steel, brass, hard alloy, electroplating products, ABS, epoxy resin, painted coated products, ceramics, etc.
Fiber laser marking machine application Industries:
Suitable for integrated circuit chips, computer accessories, industrial bearings, watches and clocks, electronics and communications products, aerospace devices, various automobile parts, home appliances, hardware tools, molds, wire and cable, food packaging, jewelry, cigarettes and tobacco, military and other industries.

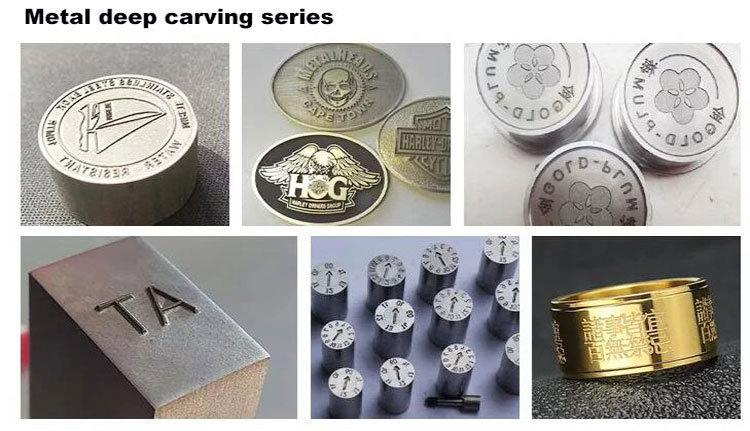

fiber laser marking machine samples
fiber laser marking machine samples
fiber laser marking machine samples
fiber laser marking machine samples
