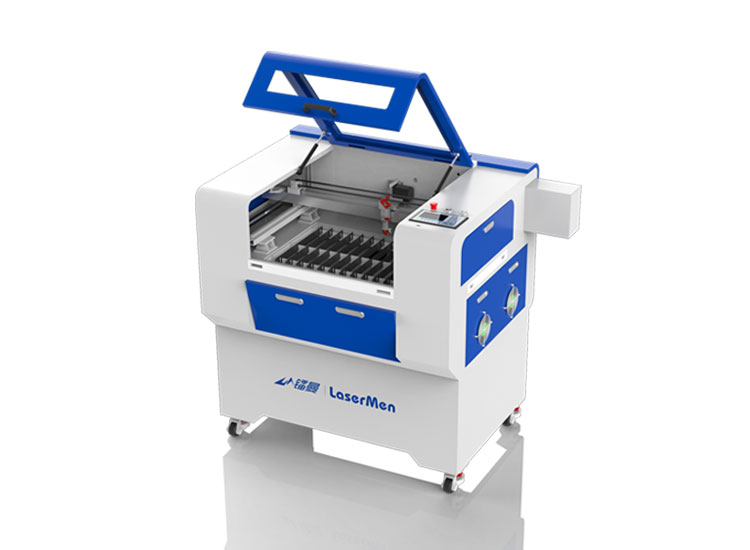

Advanced CO2 Laser Cutting Engraving Machine

Product name: Advanced CO2 Laser Cutting Engraving Machine
Model: LM-9060-F, LM-1390-F
Laser power: 100W, 130W, 150W
Working range: 900x600mm, 1300x900mm
Application: engrave and cut various non-metal materials

Machine features

1.Welded machine bed. Machine is heavier and more stable,which ensures machine runs fast and smoothly.
2.Laser tube with coaxial red light,compact design and stableperformance.
3.Module guide slide is sealed with silicon steel,effectivelyprotects the rail lubrication and lasts the rail service life.
4.Machine adopts ball screw lifting Z axis table,quality cuttingsection,high precision and good stability. Machine is able toprocess precision parts.
5.Machine adopts LeadShine servo motors, which has advantag-es of large output torque, reliable performance, no out-of-step,small heat, low energy consumption.
6.Upgraded RuiDa controller version RDC6445G, besides basicfunctions, has more functions such as vectorization,3D engrav一ing,photo laser,nesting,etc. Diversified functions make themachine more smart and easy to use.

Technical parameters

Model: LM-9060-F LM-1390-F
Laser type: CO2 glass laser tube, wavelength 10.6μm, water-cooled
Laser power: 100W 100W, 130W, 150W
Working area: 900x600mm 1300x900mm
Engraving speed: 0-1800mm/sec
Cutting speed: 0-1500mm/sec
Repeating location: ±0.01
Transmission type: Integrated module guide transmission, with sealed dust-proof structure
Driving system: LeadShine servo motors
Machine table: Slats table+honeycomb table, with high precision ball screw transmission motorized up-down axis
Software supported: CorelDraw, AutoCAD
Graphic format supported: *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Control system: DSP Off-line control system RuiDa RDC6445G, laser power 0~100% adjustable
Minimum letter size Chinese 2.0x2.0mm, English 1.0x1.0mm
Machine power input 1-phase 220V 50/60Hz, 1-phase 110V 60Hz
Machine power consumption 2kw·h
Working condition Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 LASER WOKRING CAPACITY
Material Engrave Cut Material Engrave Cut
Wood  Pressboard
Acrylic  Rubber
Fabric  Wood Veneer
MDF Plywood
Delrin Plastic
Cloth Cork
Leather Corian
Glass   Fiberglass
Ceramic   Tile
Marble   Anodized Aluminum
Matte Board Stainless Steel
Melamine Brass
Paper Titanium
Mylar Bare Metals
Coated Metals   Painted Metals

Please check with us if your material is not in the above list.

Video

Machine details

Precision co2 laser machine
HIgh precision co2 laser machine


LaserMen Precision co2 laser cutting and engraving machine with heavy duty welded machine bed, tawny safe window.  It is designed by our professional R&D team, based on customers’ requirements, which is high-precision, strong and durable.

co2 laser tube

China top brand co2 glass laser tube with coxial red light.

  Leadshine servo motors

Driving system with Leadshine servo motors

co2 laser cutting engraving machine with module guide transmission

Transmission: module guide transmission, with dust-proof structure

laser head

high precision optical laser head for non-metal engraving and cutting.

RDEngraveLab

RuiDa controller with RD6445G card and RDEngraveLab software.
RDEngraveLab sofware has powerful functions: 1. Creat badges 2.3D engraving (engrave deep up to 5mm) 3.Photo Laser 4. Nesting.


Slats table

honeycomb worktable of LM-9060-F

900*600mm and 1300*900mm, two valid working area can be selected. Machine table is slats table and honeycomb table.

Up-down table

Machine with high precision ball screw transmission motorized up-down axis.

fume filter

The left one is LM-013, 130w fume filter, the right one is LM-075, 750w fume filter. LM-9060-F co2 laser machine with the LM-013, bigger size LM-1390-F can be with LM-075



Machine Application

LM-9060-F CO2 laser engraving cutting machine is able to engrave and cut most non-metal materials, such as acrylic, wood, MDF, plywood, veneer, leather, rubber, fabric, etc. It is widely applied in advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model, toys, lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.

co2 laser cutting engraving machine for 3d engrave

  Samples of LM-F co2 laser machine
