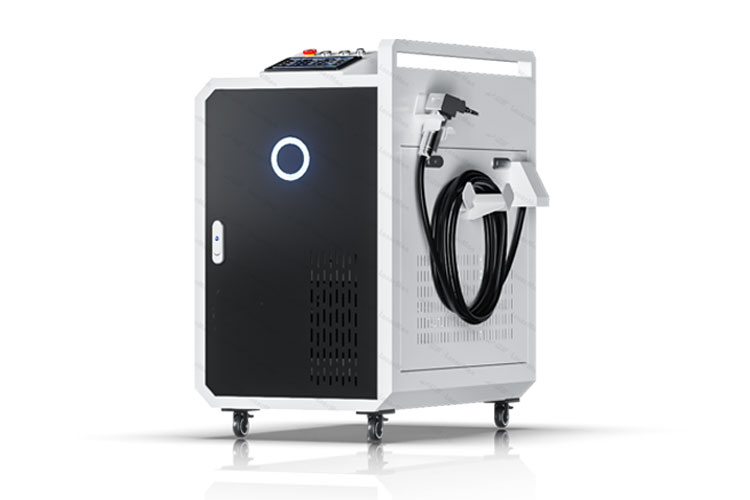

All in one Handheld metal fiber laser welding cutting cleaning machine with auto wire system

Product name: All in one Handheld metal fiber laser welding cutting cleaning machine with auto wire system
Model: LM-2000 4 in 1,LM-2000 5 in 1
Laser power: 1000W, 1500W, 2000W, 3000w
Working range:
Application: Metal materials welding, cleaning, cutting, weld seam cleaning and power battery welding

Machine features

Advantages:
1. Multifunction fiber laser machine, can weld, clean cut metallic materials and weld seam cleaning
2. Handheld type with longer holder cable length;
3.
Welding function conversion cleaning function, just replace the focusing lens and laser head;
4. Small machine body, can move easily. It is very convenient.
5. Remove oxides and other impurities, improve metal corrosion resistance
6. Optimize the surface conditions before welding
7. Weld seam and welding effect better and stable

Technical parameters


4 in 1 Handheld metal fiber laser welding
 Model LM-2000
 Laser type Fiber laser, 1080nm
 Laser power 1000W / 1500W / 2000W / 3000w
Fiber laser brand Raycus / MAX / RECI / BWT
Function  Welding, Cleaning, Cutting
 Cable length 9m (14m optional)
Welding thickness 0.5-8mm
Cooling method Water cooling
 Gas assist Nitrogen
 Visual positioning Red dot
Power input 1-phase 220V / 3-phase 380V

Double wobble 5-in-1 laser welding machine
Model LM-2000 5-in-1 laser welding machine
Machine functions Welding
Cutting
Cleaning
Weld seam cleaning
Energy battery welding
Laser type Fiber laser, 1070±20nm wavelength
Laser power 1KW, 1.5KW, 2KW, 3000W
Cooling mode Water cooling
Wobble type Double wobble
Welding cleaning working modes
Welding wobble width 0-5mm
Cleaning scanning width 0-35mm
Weld seam cleaning width 0-12mm
Power battery welding modes
Power battery welding size φ20mm   20mm*5mm
Assist gas Nitrogen / argon, 0.1-1Mpa
5 in 1

Weld channel weld seam cleaning:
Weld channel cleaning before welding, and weld seam cleaning after welding: Laser irradiation on the workpiece surface breaks the contamination layer, so that rust, dirt, and oxidized layer instantly peeled off the substrate, to restore the material's original surface, the whole process is physically and mechanically, and will not produce new substances and pollution. Laser cleaning technology is currently emerging as a highly efficient, environmentally friendly, low-cost process.
Power battery welding:
Power battery manufacturing process welding method and process of reasonable choice, will directly affect the cost of the battery, quality, safety and consistency of the battery.
Laser welding works by utilizing the excellent directionality and high power density of the laser beam. By focusing the laser beam in a very small area through an optical system, a heat source area with highly concentrated energy is formed at the place to be welded in a very short period of time, which results in the melting of the object to be welded and the formation of a solid weld and weld seam.
Penetration welding and seam welding:
Penetration welding, no punching required for connecting pieces. The laser energy penetrates the upper connecting sheet and fuses it to the lower pole.
The melting depth of seam welding is bigger than that of penetration welding, and the reliability is relatively good. But the connecting pieces need to be punched.
                        penetration welding                                                   seam welding


The weld surface is smooth and even, no spatter, no defects, no cracks inside the weld, ensuring that the aluminum alloy has good mechanical properties after welding.
In the welding of aluminum alloy, the production efficiency is high and there is no need to fill the wire.
There is no dent after welding, post-welding polishing and grinding is reduced, which saves production cost.

Video

Machine details

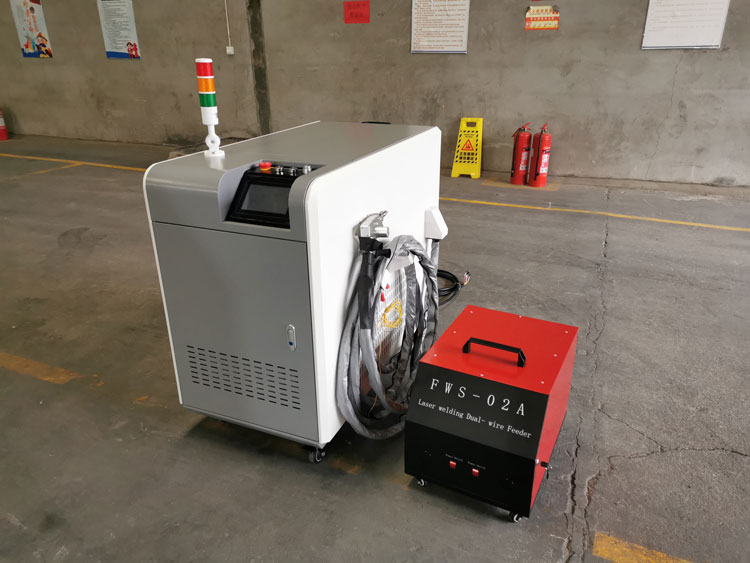

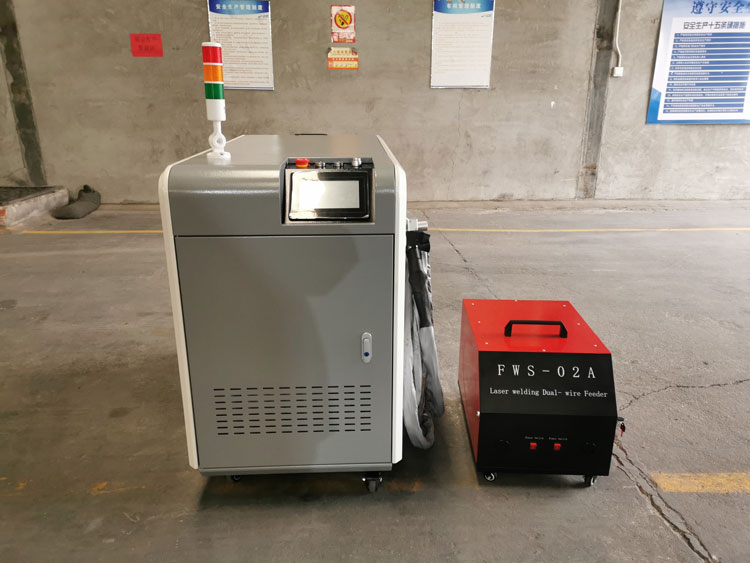

Four in one handheld fiber laser welding cleaning cutting weld seam cleaning machine in our factory.

Fiber laser welding, cleaning and cutting machine

three in one fiber laser welding machine

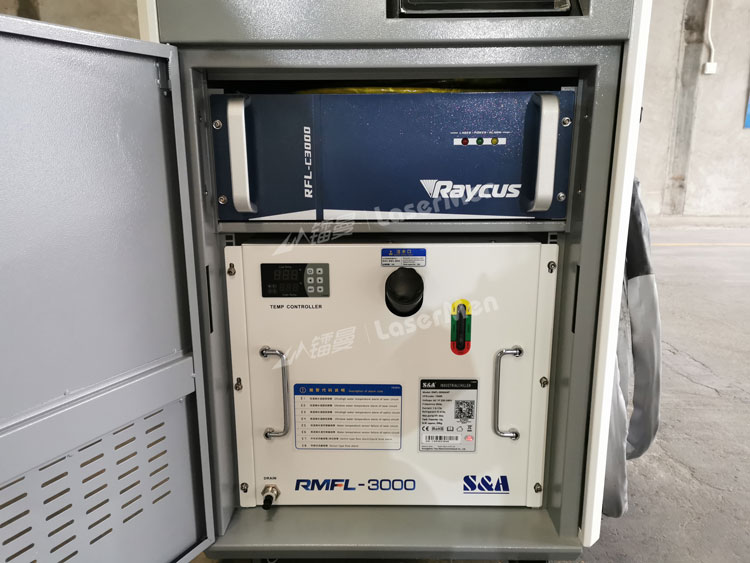

Top brand Raycus / RECI / MAX / JPT fiber laser source with 1000w, 1500w, 2000w, 3000w laser power.

handheld laser welding machine with fiber laser source

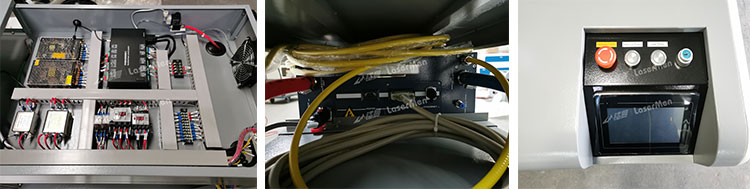

Relfar control system with handheld wobble welding system V2 card and touch screen front panel.

Relfar controller

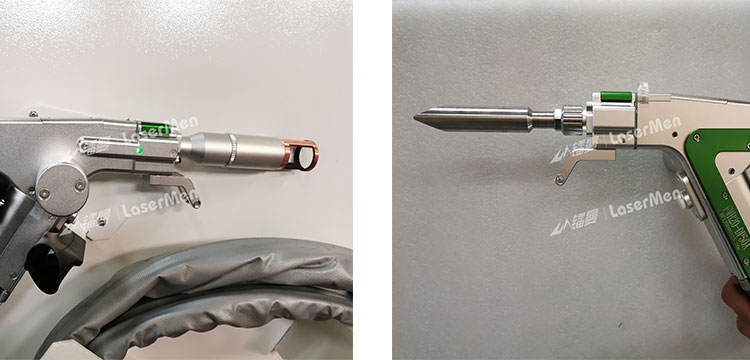

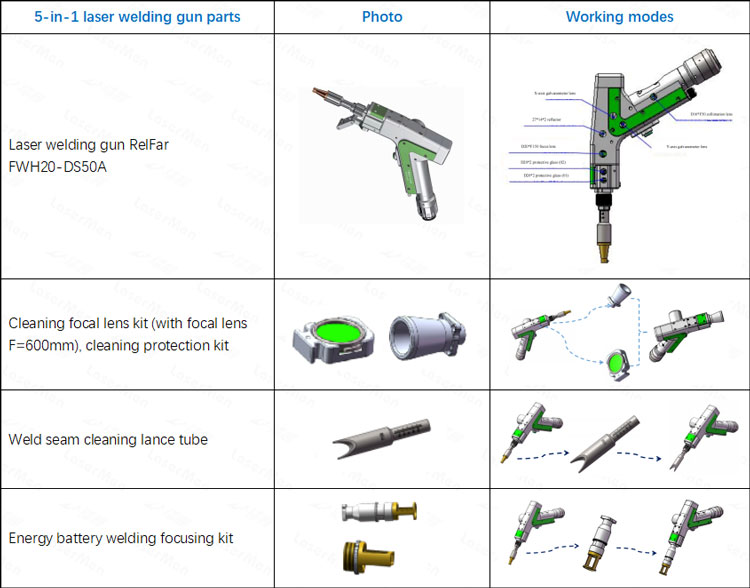

The laser gun can weld, clean and cut. And there are different nozzles for welding and match different wire with  0.8,1.0,1.2,1.6 diameter.

Welding gun
We can also do five-in-one functions
4 in 1

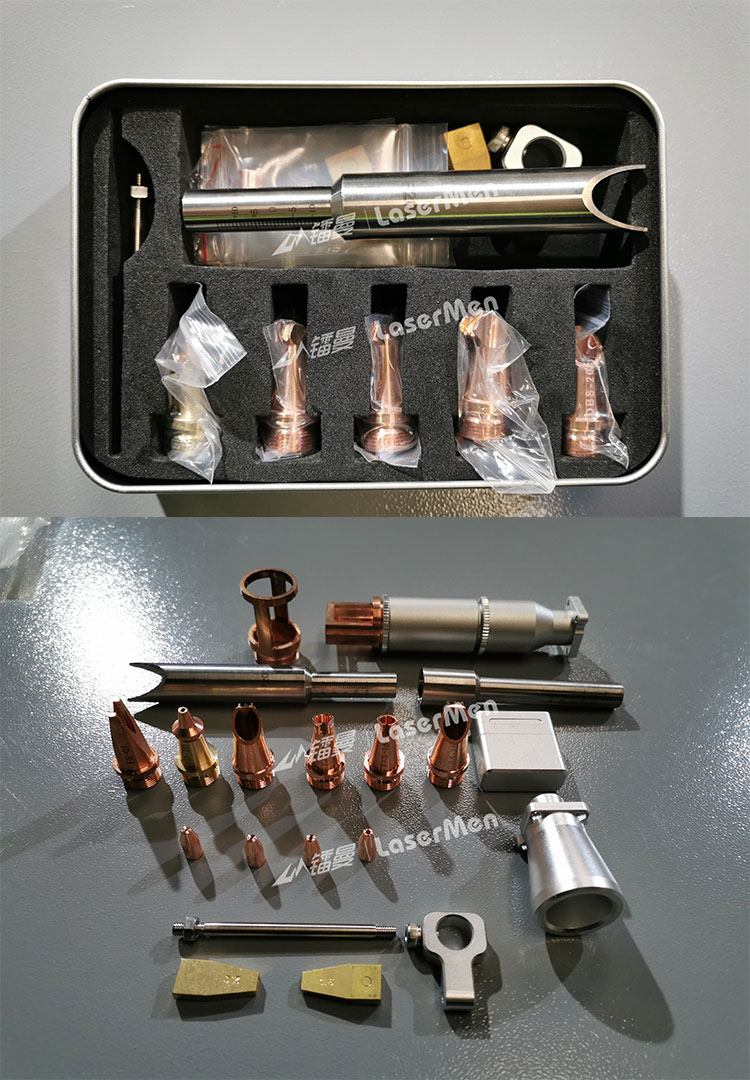

nozzles of fiber  laser machine

Industrial Water cooling system with HanLi water chiller

Industrial water chiller

Two sets foccal lens, one for welding, the other for cleaning.

focal lens

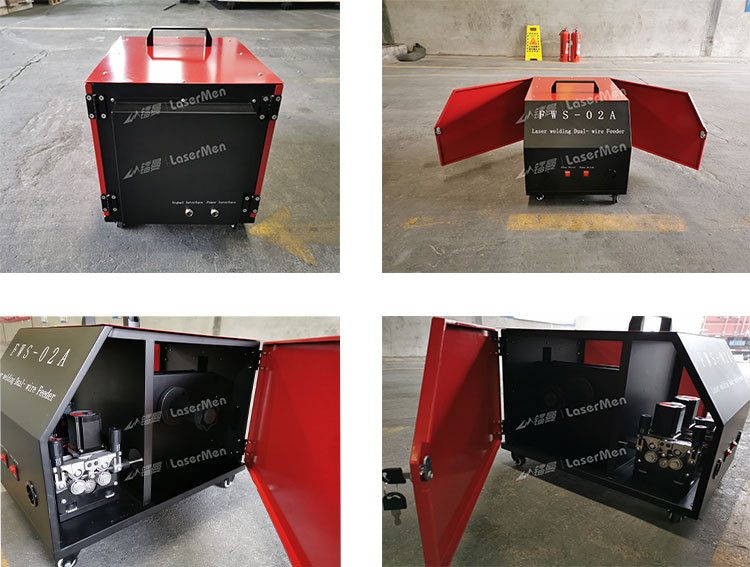

Auto wire feeding system with high-precision speed control knob, good wire feeding speed controllability.

Auto wire feeding system

Machine Application

It can welding cutting cleaning metallic, such as stainless steel, carbon steel, aluminum, galvanized sheet, brass, etc. Can be used for weld seam cleaning and new energy laser welding. It is widely applied in advertising industry, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
It is widely used in stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries complex irregular welding process.

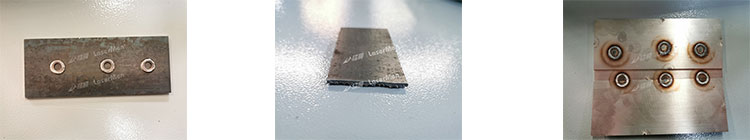

Welding sample display

Power battery welding:

4 in 1 Sample
