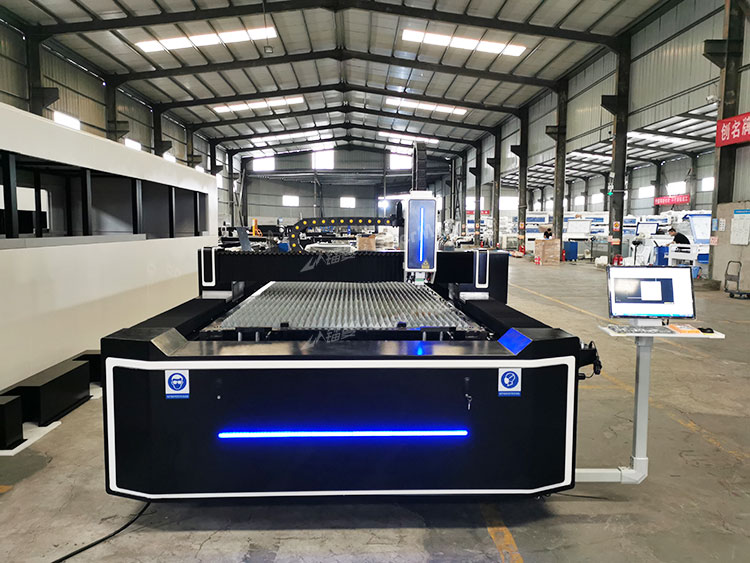

Metal sheet fiber laser cutting machine with exchange table

Product name: Metal sheet fiber laser cutting machine with exchange table
Model: LM-1530E / LM-1560E
Laser power: 1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000w
Working range: 1500 x 3000mm / 1500 x 6000mm
Application: metal sheet cutting

Machine features

1). Gantry structure is applied. One-piece casting is adopted on machine body and beam to ensure high rigidity, stability and antiknock characteristic of the equipment.
2). The reducer, gear rack and precise linear guide-way are used for transmission which are characterized of high precision
3). Servo motor is used for driving which is characterized of rapid response, high precision and stable performance.
4). The control system, integrated with the functions of control, graphics, layout and drawing, is intuitive and easy to learn.
5). The machine is equipped with upper and lower exchanging work table . The mechanical design is simplified which has significantly reduced the failure rate, improve work efficiency.

Technical parameters

Model LM-1530E / LM-1560E
 Laser type Fiber laser, 1080nm
 Laser power 1000W, 1500W, 2000W, 3000W, 4000W, 6000W, 8000w
Fiber laser brand Raycus / MAX / RECI / BWT
 Working area Sheet: 1500mm x 3000mm / 1500mm x 6000mm
 Min Line width 0.1mm
 Positioning accuracy 0.01mm
 Max. Cutting speed 60m/min
 Max acceleration 1.5G
 Transmission type Precision dual gear rack transmission
 Driving system Serve motors
 Cutting thickness Depending on laser power and material
 Assisting gas Compressed air, oxygen and nitrogen
 Cooling mode Industrial circulation water chiller
 Visual positioning Red dot
 Working voltage 3 phase 380V 50HZ/60HZ

Video

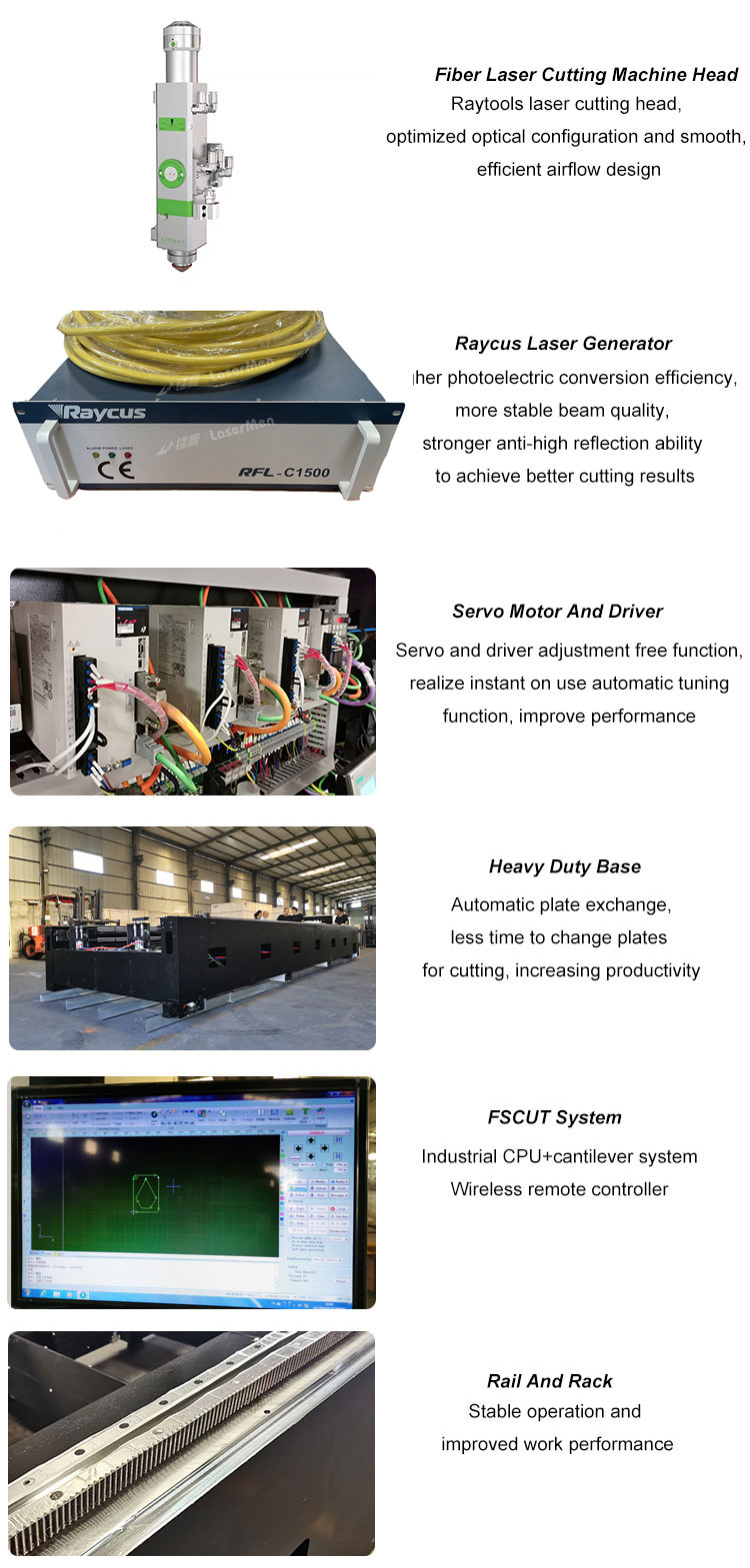

Machine details

fiber laser cutting machine with exchange table
dual platform fiber laser cutting machine
metal sheet fiber laser cutting machine

Machine Application

Fiber laser cutting machine with exchange table---Application Area
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.

Dual platform fiber laser cutting machine---Applicable Materials
Specialized fast speed cutting of various of metal plates, the main application materials:stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, copper, aluminum, various alloy plate, and other materials.

Samples of metal sheet cutting laser machine
