Machine features

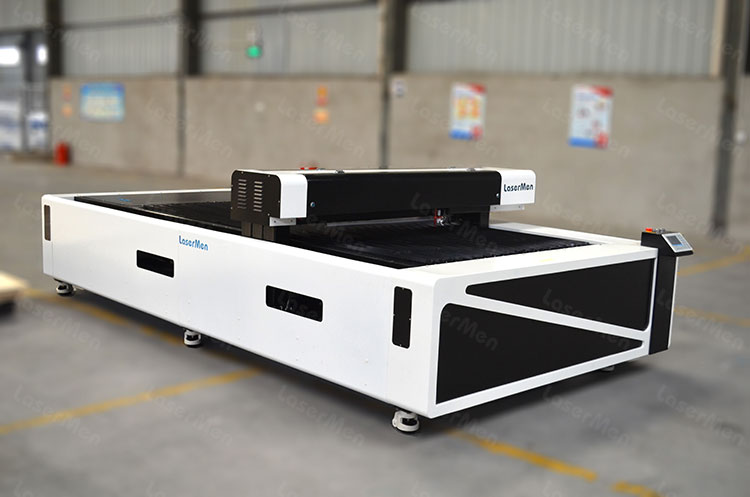

Large size 1325 ball screw CO2 laser cutting machine for nonmetals1. Ball screw and Taiwan linear guide rail transmission system, high transmission efficiency, Low friction loss, durable, long service life.
2. We adopt strong machine body, to make sure machine working with high performance
3. China top brand CO2 glass laser tube, laser power available: 150W, 180W, 240W, 300W, suitable for cutting most nonmetal materials, such as acrylic, wood, plywood, MDF, leather, cloth, paper, etc
4. Adopt Japan servo motors and drivers, make sure the machine running and working stably.

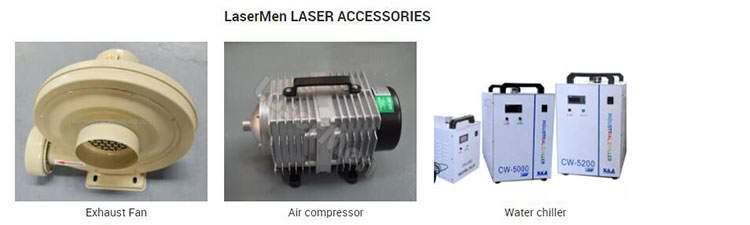

5. High power industrial water cooling system cools the CO2 laser tube and ensure stable laser output.
6. RDC6445G CNC control system with RDworks laser software support files: DXF, PLT, AI, LXD, BMP, etc. Machine read files from computer, and from USB flash as well.
7. Air assist during cutting, removes heat and combustible gases from the cutting surface. Oxygen is necessary when cutting steel.
8. Extractors removes fumes and dusts caused during cutting.
9. Solenoid valve allows gas blowing only during cutting, which avoids gas wasting.
Technical parameters
| Model | LM-1325 |
| Laser type | CO2 glass laser tube, wavelength 10.6μm, water-cooled |
| Laser power | 150W, 180W, 240W, 300W |
| Working area | 1300x2500mm |
| Engraving speed | 0-1200mm/sec |
| Cutting speed | 0-300mm/sec |
| Repeating location | ±0.01 |
| Transmission type | Ball screw |
| Driving system | Servo motor |
| Machine table | Blade table (alternative: honeycomb table) |
| Graphic format supported | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw |
| Software supported | CorelDraw, AutoCAD |
| Control system | RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable |
| Minimum letter size | Chinese 2.0x2.0mm, English 1.0x1.0mm |
| Working voltage | Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) |
| Working condition | Temperature 0~45 Celsius; Humidity 5%~95% no condensation |
CO2 LASER WOKRING CAPACITY
| Material | Cut | Material | Cut |
| Wood | √ | Pressboard | √ |
| Acrylic | √ | Rubber | √ |
| Fabric | √ | Wood Veneer | √ |
| Glass | Fiberglass | √ | |
| Coated Metals | Painted Metals | ||
| Ceramic | Tile | ||
| Delrin | √ | Plastic | √ |
| Cloth | √ | Cork | √ |
| Leather | √ | Corian | √ |
| Marble | Anodized Aluminum | ||
| Matte Board | √ | Stainless Steel | |
| Melamine | √ | Brass | |
| Paper | √ | Titanium | |
| Mylar | √ | Bare Metals |
MACHINE DIMENSIONS
| Model | Machine dimensions | Package dimensions | Gross weight |
| LM-1325-ballscrew | 1955*3650*1100mm | 4550*2270*1280mm=13.22 CBM | 980KGS |
Video
Machine details
1. Adopt imported high-precision linear guide rail transmission, to make the optical laser path and machine movement more stable, and cutting and engraving effect better.
2. Adopt the most advanced DSP control system, high movement speed, easy operation, high speed engraving.
3. The X axis adopts high-strength aluminum alloy structure, comparing with the traditional steel frame, it has advantages of lighter weight, less resonance and smoother movement.
4. Boxed type exhaust fan to ensure the cleanliness of the working environment.
5. Machine is very suitable for large sized sheets cutting, such as MDF, acrylic, etc.
Machine Application
Applicable Materials:The machine is able to cut most non-metal materials, such as acrylic, perspex, wood, plywood, MDF, cloth,leather, plastic, paper, cardboard, pvc, rubber, etc.
Application Industries:
Advertising industry, packaging industry, arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
