Home > laser machines > CO2 laser cutting engraving machine

Double heads co2 laser cutting and engraving machine

Product name: Double heads co2 laser cutting and engraving machine
Model: LM-1390 double heads, LM-1610 double heads
Laser power: 100w+100w, 130w+130w, 150w+150w, 150w+80w, 180w+80w, 240w+80w, 300w+80w
Working range: 1300x900mm, 1600x1000mm
Application: Double heads co2 laser machine is widely applied for engraving and cutting various non-metal materials, such as: acrylic, wood, plywood, mdf, double-layer sheet, cloth, leather, foam, glass, stone, etc.

Machine features

1. LaserMen double head laser engraving cutting machine for nonmetal. with double heads working, more efficiency.
2. Two co2 glass laser tube, laser power can be with 80w+80w, 100w+100w, 150w+150w, 180w+180, 80w+150w, 80w+180w.
3. There are 2 sizes for your choice:130x90cm and 160x100cm.
4.  Machine driving system is stepper motors. Fast engraving speed is up to 1200mm/sec.
5. Double heads working, more efficiency, can cut and engrave wood, acrylic, MDF, plastic, leather etc.
6. Some optional functions like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.

Technical parameters

Model  LM-1390 double heads  LM-1610 double heads
Laser type  CO2 glass laser tube, wavelength 10.6μm, water-cooled
Working area  1300*900mm 1600*1000mm
Laser power  100w+100w, 130w+130w, 150w+150w, 150w+80w, 180w+80w, 240w+80w, 300w+80w
Engraving speed 0-1200mm/sec
Cutting Speed 0-500mm/sec
Repeating location ±0.01
Transmission type: Belt transmission
Driving system Stepper motor
Machine table Blade table (alternative: honeycomb table)
Graphic format supported *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Software supported CorelDraw, AutoCAD
Control system RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable
Minimum letter size Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
Working condition Temperature 0~45 Celsius; Humidity 5%~95% no condensation
Graphic format supported: *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw







Video

Machine details

1610 double heads laser cutting machine
1610 double heads laser head
co2 laser cutting engraving machine details show

Details of 1610 double heads wood acrylic mdf leather colth plywood laser cutter
* Laser tube of nonmetal laser cutter
Long service life of the laser tube, applicable to the cutting of cutting and engraving nonmetal materials, such as wood mdf leather acrylic, etc.

* Guide of co2 laser cutter engraver machine
 The linear guide rail can achieve a long life with high speed, high accuracy and smooth linear motion.

* Stepper motor of laser cutter engraver machine
Low noise, low vibration, smooth running, high torque;
Higher acceleration, better accuracy;
Better Acceleration performance;

* Ruida control system of laser cutter engraver machine
Simple and easy operation;
13 kinds of languages can be choice;
Parameters can be stored;
Support offline use and wifi.

Machine Application

Double heads co2 laser engraving cutting machine for nonmetals is widely applied for engraving and cutting various non-metal materials, such as: acrylic, wood, plywood, mdf, double-layer sheet, cloth, leather, foam, glass, stone, etc.

It is popular in the industries of advertising signs, arts and crafts, architectural models, wine bottle customizing, toys, chothing, shoes, bags, etc.

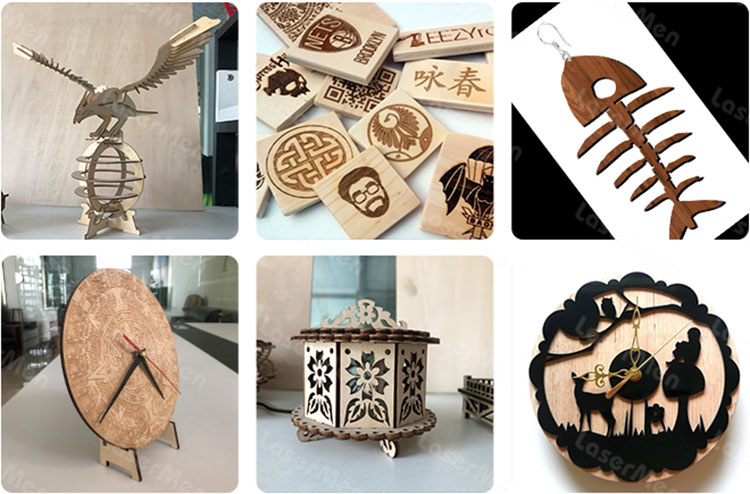

co2 laser cutting engraving machine samples show
